Explore the spatial distribution of partitions for occurrence and background points

Usage

explore_partition_geo(data, raster_variables, mask = NULL,
                      show_partitions = TRUE, partition_palette = "cols25",
                      custom_partition_palette = NULL, pr_col = "#D55E00",
                      bg_col = "#0072B2", pr_bg_col = "#CC79A7",
                      calibration_area_col = "gray80", ...)

Arguments

data: an object of class prepared_data returned by the prepare_data() function.
raster_variables: (SpatRaster) predictor variables used for model calibration.
mask: (SpatRaster, SpatVector, or SpatExtent) spatial object used to mask raster_variables to the area where the model will be calibrated. Preferably the same object used in prepare_data (if applicable). Default is NULL.
show_partitions: (logical) whether to return SpatRaster showing the spatial distribution of each partition for presence and background points. Default is TRUE.
partition_palette: (character) the color palette used to color the different partitions. See ?kuenm2_discrete_palettes to check available options. Default is "cols25". Only applicable if show_partitions = TRUE.
custom_partition_palette: (character) a character vector defining custom colors for the different partitions. The number of values must match the number of partitions in data. Default is NULL, meaning the palette defined in partition_palette will be used.
pr_col: (character) the color used for cells with presence records. Default is "#D55E00".
bg_col: (character) the color used for cells with background points. Default is "#0072B2".
pr_bg_col: (character) the color used for cells with presences and background points. Default is "#CC79A7".
calibration_area_col: (character) the color used for cells without presences or background points. Default is "gray80".
...: additional arguments passed to terra::plot().

Value

A categorical SpatRaster with four factor values representing:

1 - Background cells
2 - Presence cells
3 - Cells with both presence and background
4 - Non-used cells

If show_partitions = TRUE, it also returns SpatRaster showing the spatial distribution of each partition for presence and background points.

Examples

# Import raster layers
var <- terra::rast(system.file("extdata", "Current_variables.tif",
                               package = "kuenm2"))

# Import prepared_data
data(sp_swd, package = "kuenm2")

# Explore partitions in the geographic space

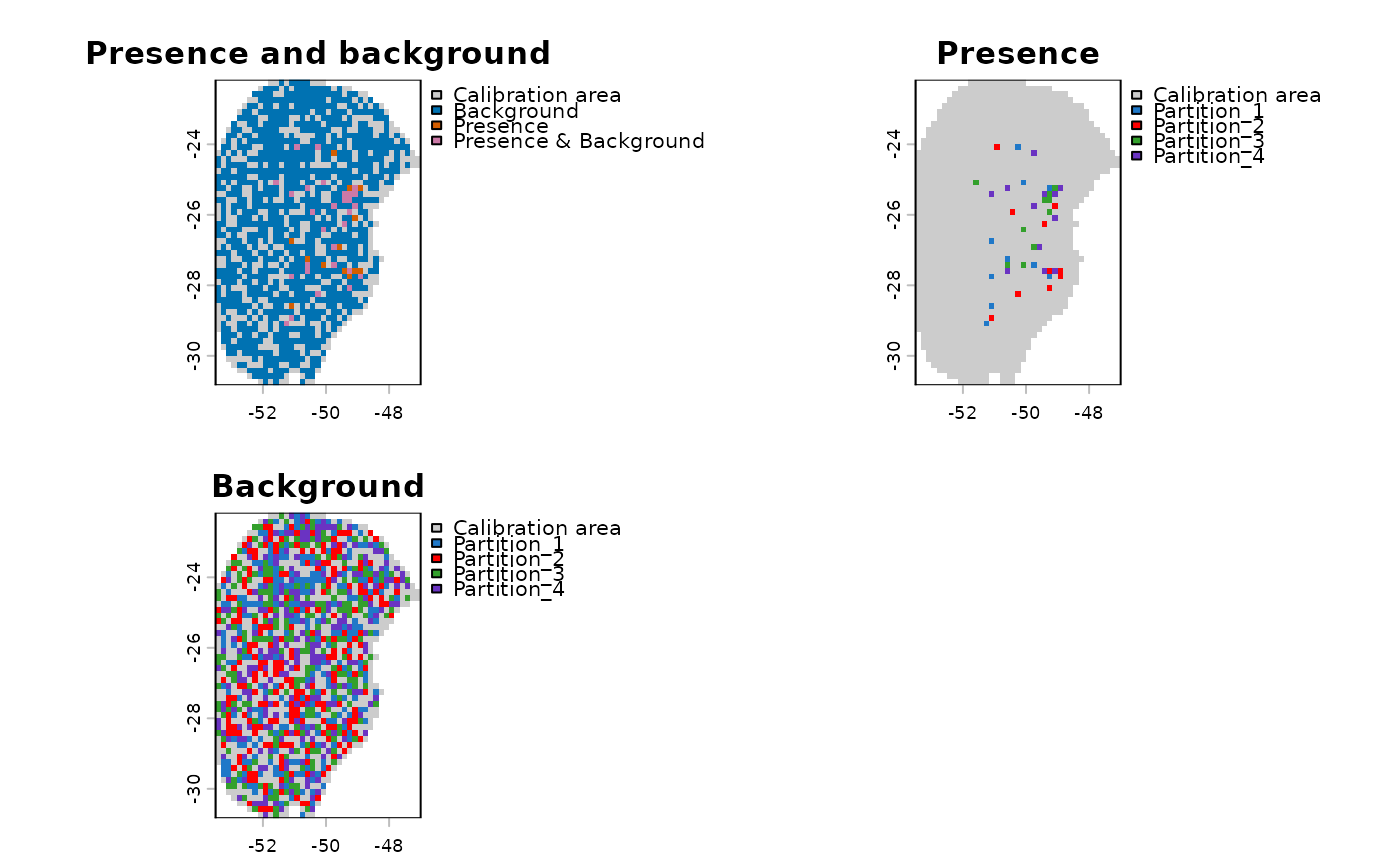

pbg <- explore_partition_geo(data = sp_swd, raster_variables = var[[1]])
terra::plot(pbg)
